PLEASE HELP ME IDENTIFY WHAT INTERNAL CONNECTOR.

littledancersadhu

littledancersadhu

New Member
I have a old compaq EVO notebook N150. I took the hard disk out and lost the adapter that goes onto the hard drive too connect it back to the lap top.
If anyone can identify what adapter i require, i would be very appreciative
Regards LloydDSC_0000088.jpg

I think that's one of those sled-to-laptop-IDE connectors, they had two 22 pin sides for 44 pins.

Since the system model you indicated was like a Pentium 3 and pre-SATA then it'd make sense.

This URL says $15 but you can probably find it on something like aliexpress for pennies

www.cpumedics.com

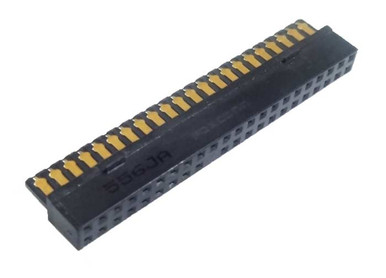

Dell 8267R - IDE PATA Hard Drive Connector Adapter for Dell Laptops

Welcome to CPU Medics, your online source for laptop replacement parts, along with parts for desktops, servers and printers. Visit us online to see our wide selection of parts from Dell, HP, Compaq and others.
www.cpumedics.com www.cpumedics.com

Thanks for the reply, it is this connector, but the 22 pin female version.

It was on the drive the whole time! so problem sorted.

Next problem,ancient laptop wont boot, no indicatot lights and or fan movement, pushed the reset button.

Maybe the power connector soldered to the pcb is brocken.

ideas welcome to get a pehistoric compaq N150 working
