Project :: Glass & Wood

Mankz_91

Mankz_91

New Member
Well, this is going to be my project for my school design competition..

its going to be a Shuttle / desktop / HTPC style case, based around a mATX mobo with 939 and PCI-E (so i can actually use it afterwards as a PC!) , also with mATX PSU, a single DVD drive, single hDD and a hole host of design and fabrication work...

its going to be CAD designed and mostly fabricated on CNC, with a little help for good old me...

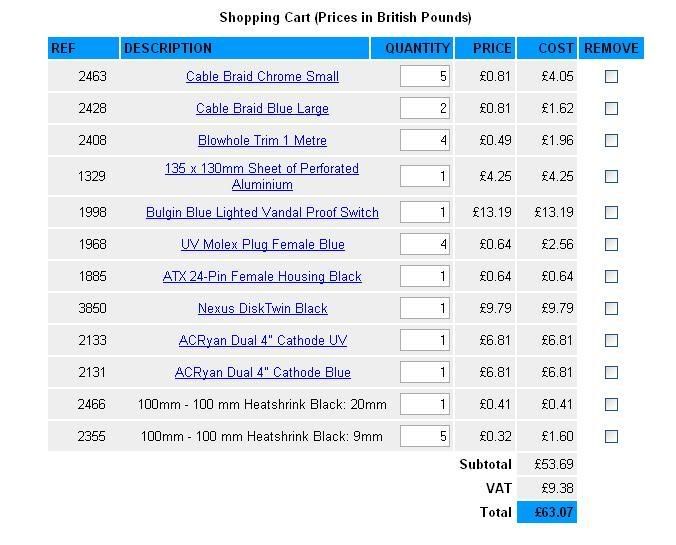

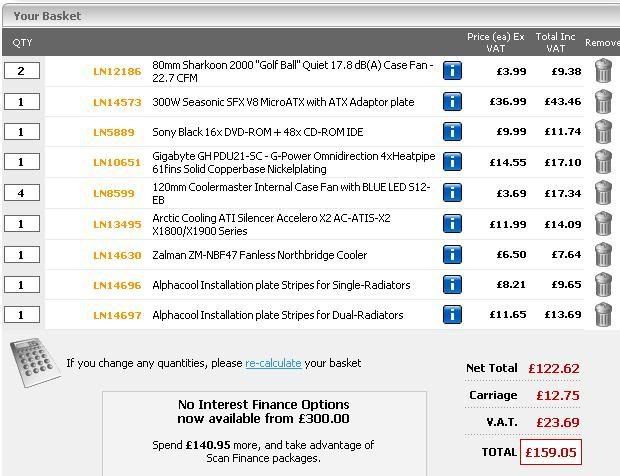

here are the new bits im so far going to order, and hopefully by this after-noon i'll have some of the designs done...:D

AJ

little updates....:: im just homing in on what i want...

Slot Loading Slimline DVD Drive

3 x Sharkoon Goldball 2000's 80mm fans

5 x 120mm Coolermasters Blue LED fans

Gigabyte G-Pro HSF (from a certain sponsor!!)

Zalman Passive Northbridge to aid cooling.

http://www.scan.co.uk/Products/ProductInfo.asp?WebProductID=385913 to control the main intake fan, and the two fans for the motherboard section'

mATX 300W Seasonic PSU to be sandblasted and polished and sleaved...

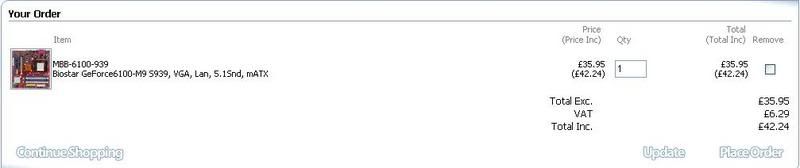

Biostar T-Force 6100 mATX Motherboard

a poo load of modding stuff, like swtches, port extensions, sleeving and what ever

Last edited:
it simplle design, with CAD, CNC, metal work and word work...

we have to build some thing using all of the above, and i can do a PC, so why not put it into my projct ??
